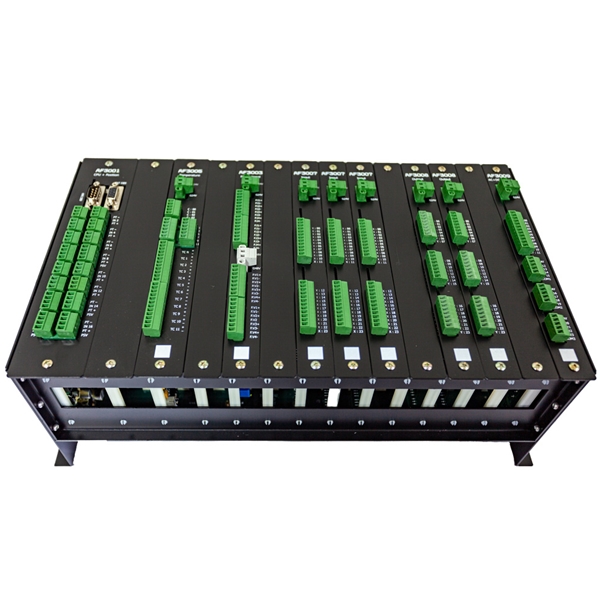

AF5

Item

Specification

CPU

RDC1120

DA OUTPUT: Proportional

Standard Channel

4P4F

Option/Max

4P4F/8P8F

Voltage out

DC 0~±10V

Currtent out

DC +0~1A

Resolution

12bits

AD INPUT: Position & Pressure sensor

Standard Channel

Position Power Supply

Pressure Sensor Power

16

DC10V

DC24V

Resolution

18bits

AD Temperature

Standard Zone

12

Option/Max Zone

12/24

Thermocouple

K (0~500℃)

Resolution

16bits

Temperature Heating out control

Standard Zone

12

Option/Max

Voltage out

12/23

DC 24V@100mA

DC Mosfet Output

DC

60

Relay

12

Option/Max

Voltage out DC

24/120

NPN(Common DC+24V)

Relay

Input

Standard Port

72

Option/Max

Voltage in

24/120

NPN(Common DC 0V)

Encoder

Standard Channel

Resolution Signal

INPUT interface

×

×

×

Interface

CAN

RS422

×

1
